Micro Inverter Energy Storage Battery 1024wh 5120Wh Balcony Solar Portable power station 800W power station
Description:
The Balcony Solar Storage System is a compact energy storage solution specifically designed for balcony and terrace installations. It comprises solar photovoltaic panels, a micro-inverter, and intelligent lithium batteries.
Convenient Installation: Unlike traditional rooftop solar systems, the installation process for the balcony solar system is remarkably convenient and flexible, providing a plug-and-play solution.

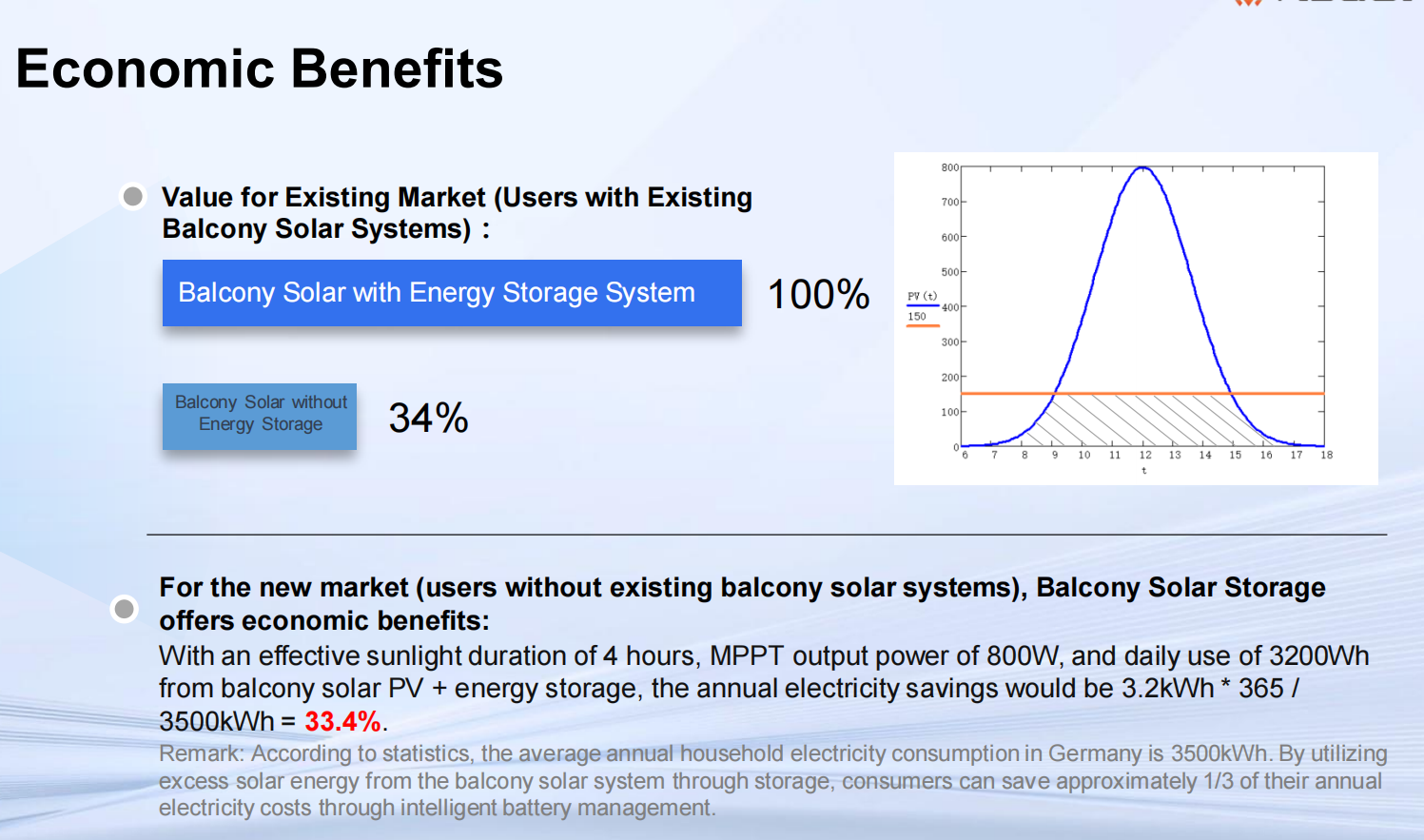

Substantial Benefits: Photovoltaic systems generate electricity primarily during daylight hours, which may not always align with users' peak electricity demand. By incorporating energy storage, particularly with a balcony solar system, users can enjoy significant financial benefits due to price differentials and optimized energy utilization.
Features :
Operation Principle
Problem-Solving & Market Positioning

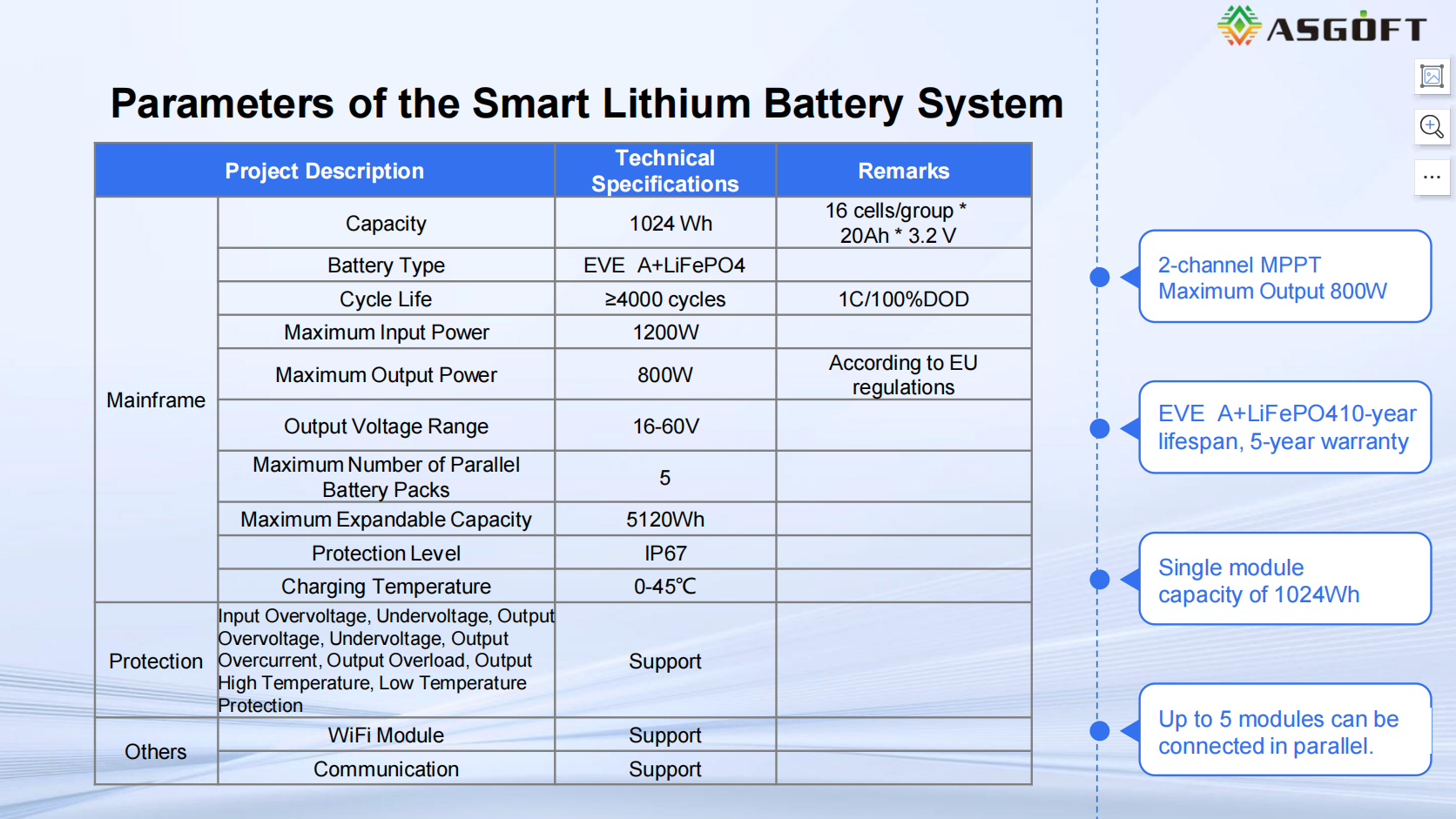

Specifications:
| Project Description | Technical specifications | Remarks |
| Mainframe | Capacity | 1024 Wh | 16 cells / group* 20Ah*3.2V |
| Battery Type | EVE A+ Lifepo4 | |
| Cycle Life | ≥4000 cycles | 1C/100%DOD |
| Maximum Input Power | 1200 W | |
| Maximum Output Power | 800 W | According to EU regulation |
| Output Voltage Range | 16-60V | |
| Maximum Number of Parallel Battery Packs | 5 | |
| Maximum Expandable Capacity | 5120 Wh | |
| Protection Level | IP67 | |
| Charging Temperature | 0-45℃ | |
| Protection | Input Overvoltage, Undervoltage, Output Overvoltage, Undervoltage, OutputOvercurrent, Output Overload, Output High Temperature, Low Temperature Protection | Support | |
| Others | WiFi Module | Support | |
| Communication | Support | |
Product Details :

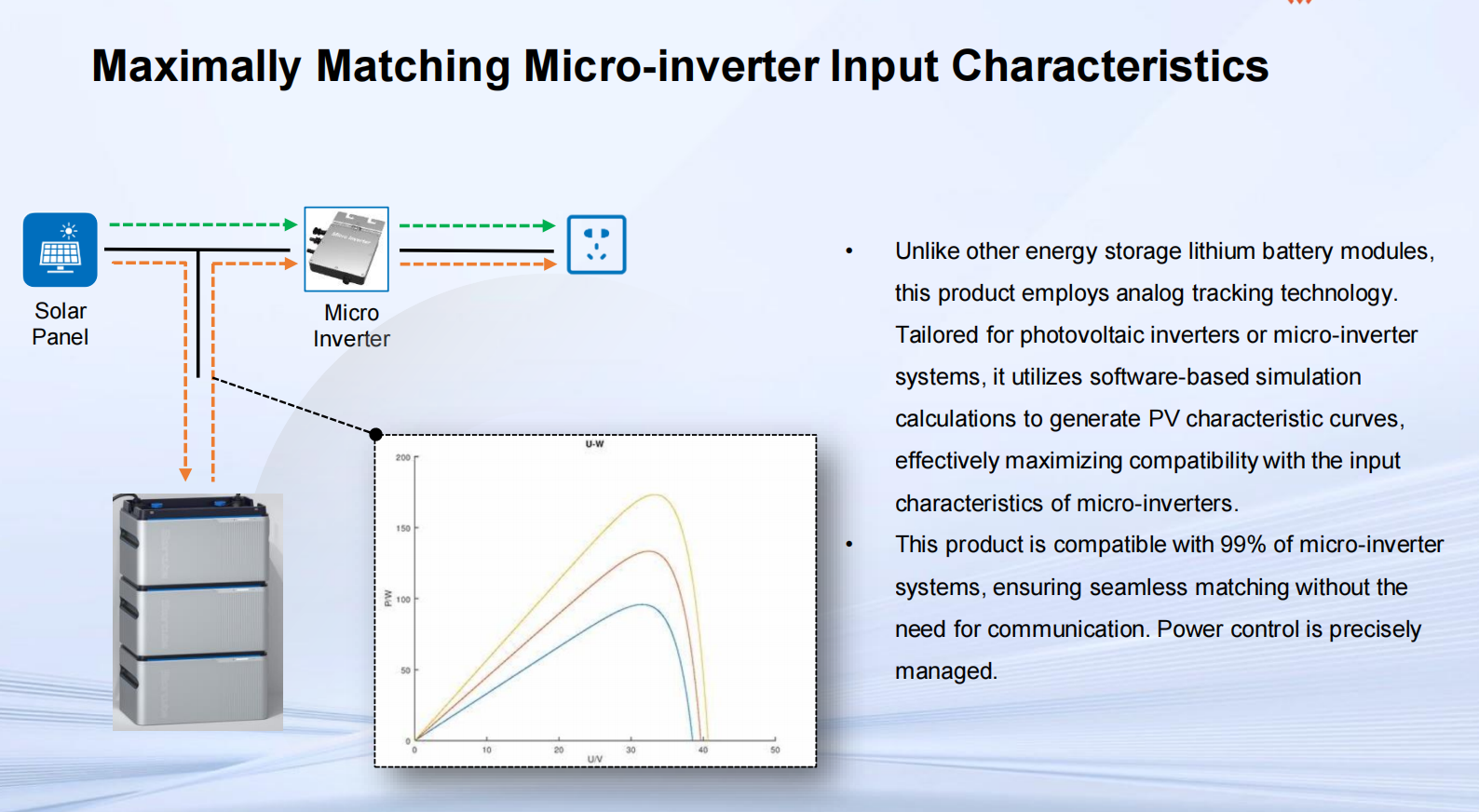

Unlike other energy storage lithium battery modules, this product employs analog tracking technology.Tailored for photovoltaic inverters or micro-inverter systems, it utilizes software-based simulation calculations to generate PV characteristic curves, effectively maximizing compatibility with the input characteristics of micro-inverters.
•
This product is compatible with 99% of micro-inverter systems, ensuring seamless matching without the need for communication. Power control is precisely managed.
1. Who are we? What do we do?
We are based in Shenzhen, China, and focus on ESS battery solutions for clients all over the world.
There are high-profile R&D, top management, and sales teams.
ODM/OEM is available.
2. How do we guarantee the product warranty?
There is a 5 to 10 years warranty period.
3. How long is the lead time of the sample order and production order?
It takes about 1-2 weeks for sample e order.
It takes about 2-4 weeks for a production order.
4. How long is the shipment?
It takes about 2 weeks via air, and 3-7 weeks via sea, depending on the destination.
5. How do we offer the after-sales service?
We're ready for 24/7 service.
